Вольтметр цифровой Shenmingyang красный
Вольтметр цифровой Shenmingyang красный Вольтметр цифровой Shenmingyang красный Вольтметр цифровой Shenmingyang красный Вольтметр цифровой Shenmingyang красный Вольтметр цифровой Shenmingyang красный Вольтметр цифровой Shenmingyang красный

Вольтметр цифровой Shenmingyang красный

SKU
570252372872
Category
Измерительные инструменты
Availability
In stock

1,82 ₽

← Back to catalog

Description

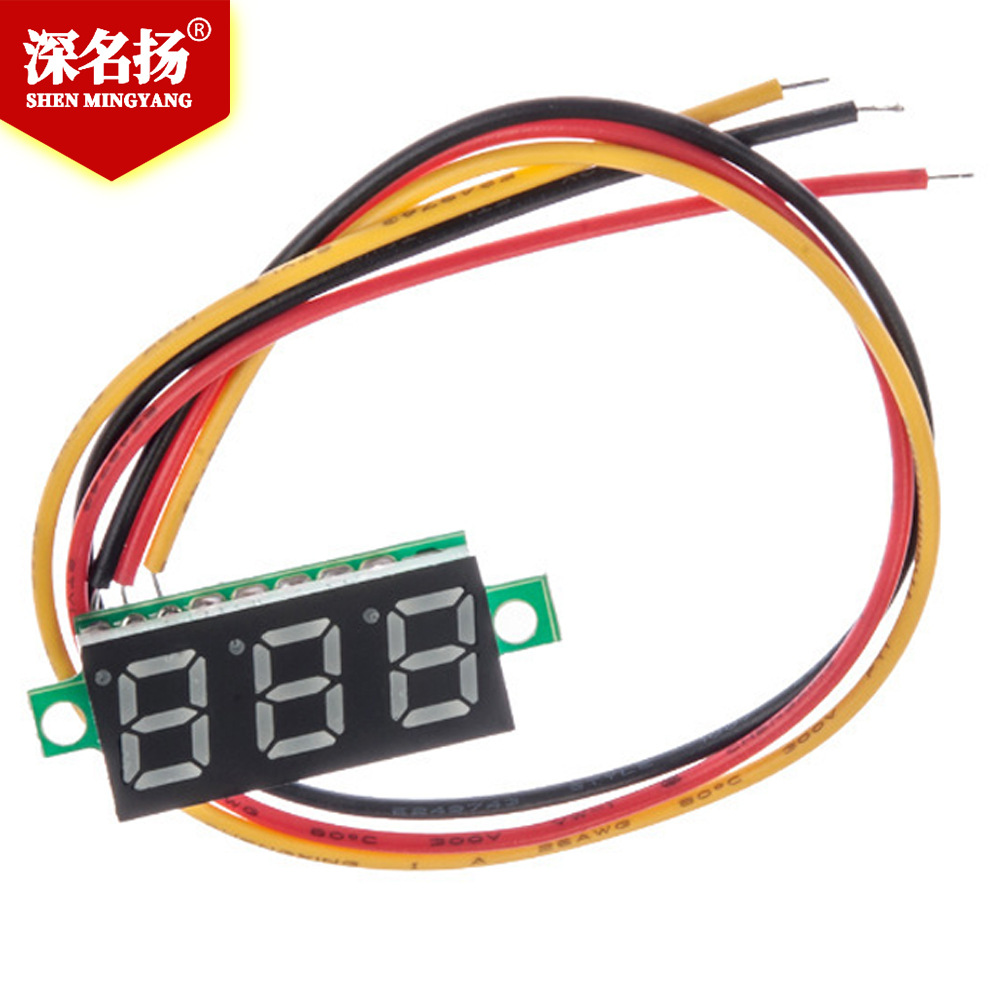

The compact Shenmingyang digital DC voltmeter features a bright 0.28-inch LED display, designed for high-precision voltage measurement between 0 and 100V. Its ultra-small size makes it an ideal choice for integration into control panels, distribution boxes, or small electronic device housings.

The device supports two connection modes: two-wire and three-wire. The three-wire configuration allows measurements starting from 0.0V for maximum accuracy, while the two-wire configuration operates from 5 to 100V. The voltmeter is equipped with reverse polarity protection to prevent damage during incorrect installation.

With a fast refresh rate and low current consumption, this voltmeter is perfect for monitoring batteries, power supplies, and other DC electrical systems. The robust design ensures reliable operation across a wide range of temperatures and environmental conditions.

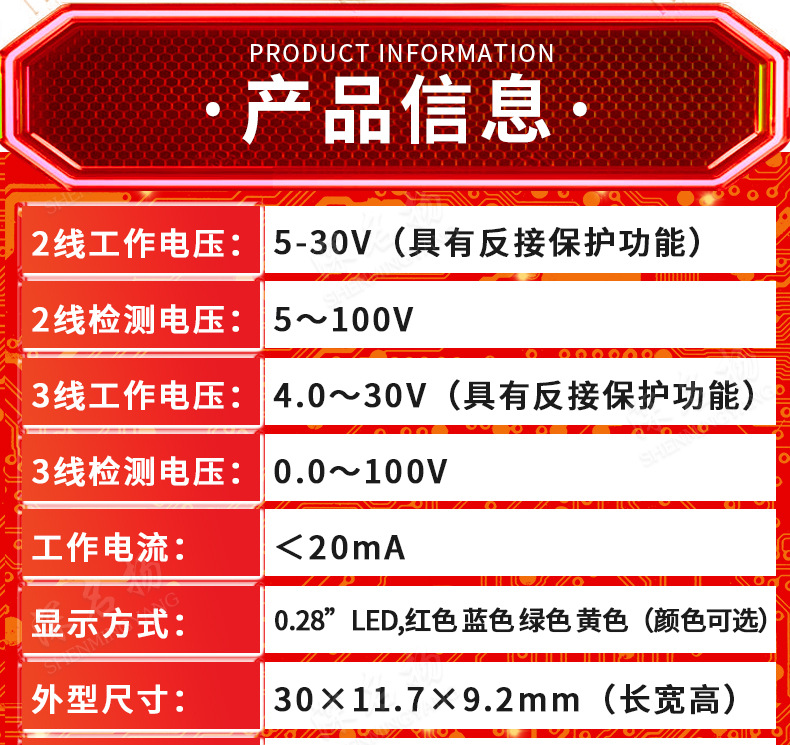

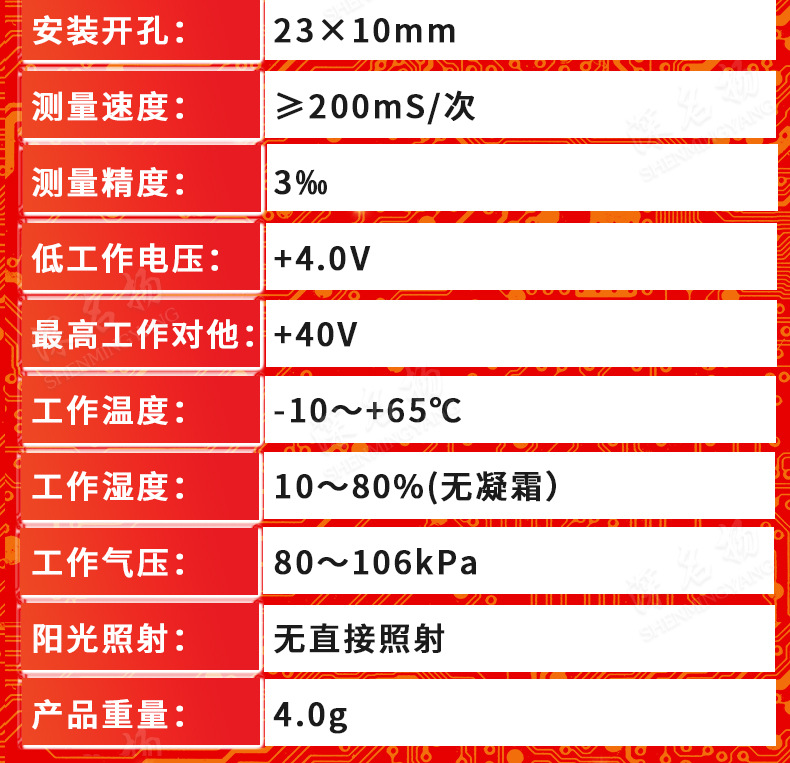

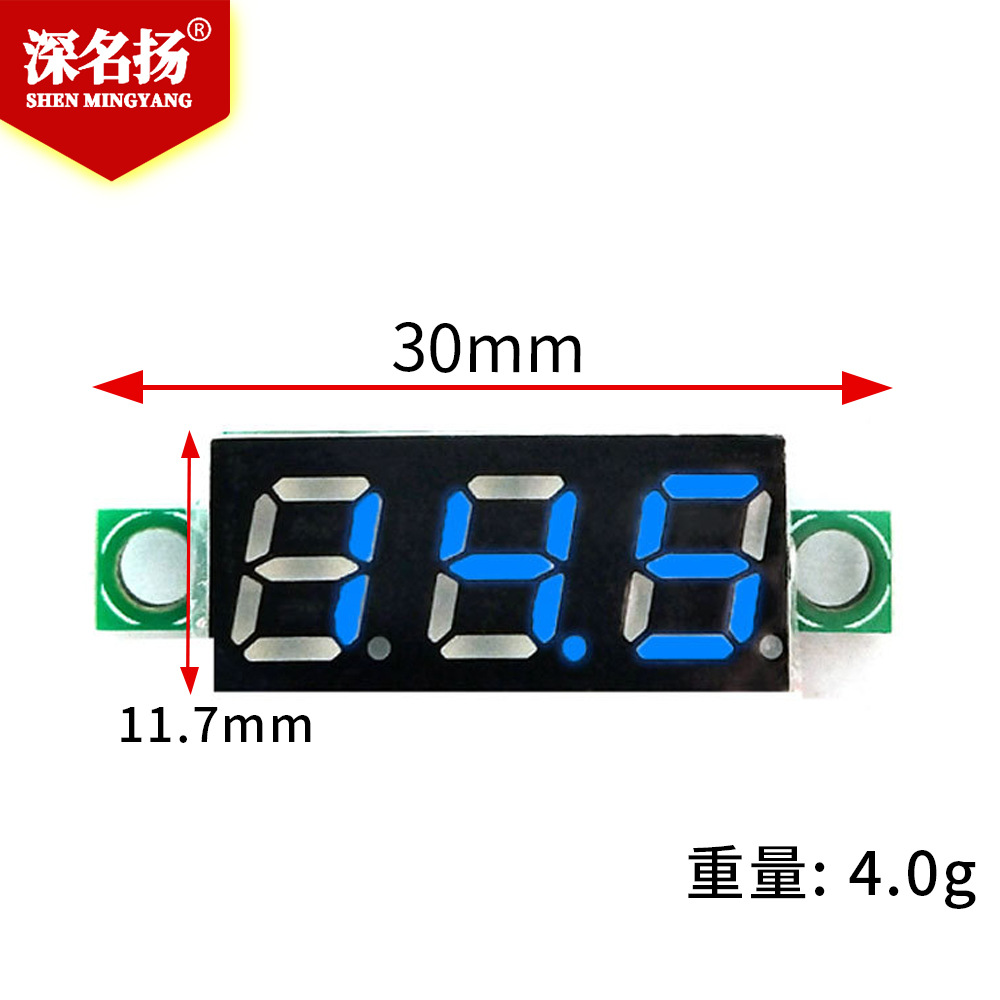

{"Brand": "Shenmingyang", "Operating Voltage (2-wire)": "5-30V (with reverse polarity protection)", "Measurement Range (2-wire)": "5~100V", "Operating Voltage (3-wire)": "4.0~30V (with reverse polarity protection)", "Measurement Range (3-wire)": "0.0~100V", "Operating Current": "<20mA", "Display Type": "0.28\" LED (Red, Blue, Green, Yellow)", "Dimensions": "30 × 11.7 × 9.2 mm", "Mounting Hole Size": "23 × 10 mm", "Measurement Speed": "≥200ms/time", "Measurement Accuracy": "3‰", "Low Operating Voltage": "+4.0V", "High Operating Voltage": "+40V", "Operating Temperature": "-10 ~ +65°C", "Operating Humidity": "10~80% (non-condensing)", "Operating Pressure": "80~106kPa", "Sunlight Exposure": "No direct irradiation", "Product Weight": "4.0 g"}

Options

SKU Price Availability

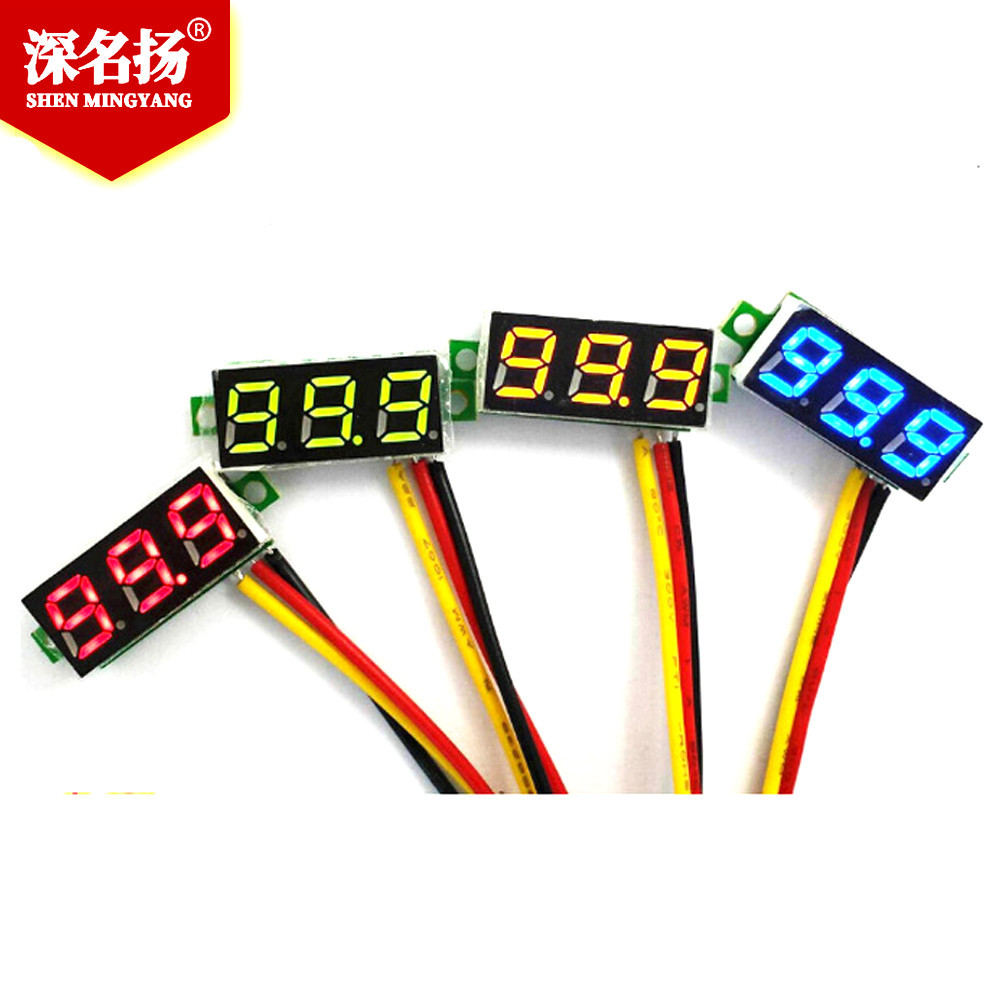

0:0:规格型号:三线0~100V 红色 (570252372872-4885673542898) 1,82 ₽ In stock
0:1:规格型号:三线0~100V 蓝色 (570252372872-4885673542899) 1,95 ₽ In stock
0:2:规格型号:三线0~100V 绿色 (570252372872-4885673542901) 1,93 ₽ In stock
0:3:规格型号:三线0~100V 黄色 (570252372872-4885673542900) 2,06 ₽ In stock
